Overview             Digital P-45

The  Digital P-45 Firing System is the Little Brother of the Digital Nighthawk the Flagship of the pyrotechnics industry. It boasts cutting edge technology and features that are unavailable in any other firing system made by any company and is as well the most powerful and user friendly system of all others.  It was designed for display companies that needed an extremely flexible manual system to meet the needs of massively varying displays, without all the bells and whistles of its big brother.

This system lets you select  and fire Digital modules manually, By standard selection or by 14 preset module groups that allow simultaneous multiple module firing, with the added capacity and flexibility of Digital operation and the Largest Cue Capacity available on any system on the market, This panel is no lightweight!!

But the real innovative technology is the ability to fire up to 7,668 cues using any of 199 addressable Digital SM 32T Smartfire or Digital 45 modules, in Wired or Wireless configurations!

The Panel is available with Internal wireless card or will work with external transmitter.

Now you can get a manual digital wired or wireless system without having to pay for features that you do not need!



This system is even flexible enough to allow for use as a manual panel for those with Smartfire systems that want to fire manual shows without their laptop, It also serves as an inexpensive backup panel to Smartfire or Digital Nighthawk.



NEW DOWNLOADABLE AUTOMATED VERSION NOW AVAILABLE!!!



 Overview  Features  Specifications  Pricing  Manuals

Features

DP-45

This system lets you select and fire modules manually, By standard selection or by 14 preset module groups that allow simultaneous multiple module firing,

45 Booted Waterproof push buttons and 199 distribution channels allow for simple manual firing of up to 7668 cues.

Tri Color LED's for Status of Continuity and Firing progress.

LCD screen has complete Show data and Battery Status

Firing is accomplished without an attached computer to greatly improve reliability.

Can be used in a  wired digital, wireless digital, or hybrid setup.

Compatible with SM-32T Smartfire and Digital P-45 wireless or wired modules.

Up to 14 programmable rail groups for manual firing

Up to 199 digital firing modules, each with 32 or 45 fully addressable cues

Up to 7668 cues per show

Self contained rechargeable battery power system with SmartCharge

Rugged design from cases, to connectors, to wires can handle the harsh environment expected at a display





 Overview  Features  Specifications  Pricing  Manuals

Specifications

Digital P-45 Pyrotechnic Firing Controller

Wireless P-45 Pyrotechnic Firing Controller

Self Contained 2.9 AMP Hour, 24 Volt lead acid rechargeable gel cells.

Battery Charger can be powered by 120 VAC or 12 VDC car adaptor.

Physical Built in Digital Display Battery Charge Status

SmartCharge monitors the battery and modifies its charge rate to charge quickly while also protecting from an overcharge.

Exact simultaneous firing of multiple cues in different modules

Unlimited firing distance.

32 bit solid state microprocessor for reliable operation

LCD screen for, positive communication, power and system state

Arming key to comply with NFPA

Output to modules are gold plated industry standard XLR connectors

RS485 Reliable Data Protocol used to communicate with components

Industrial ABS weatherproof case

Optional Intergrated Wireless transmitter















45 cue Self Contained Digital Smart Module

(FM45 Digital)

Digital processor and terminals in a single unit

90 Terminals per module allow for 45 cues.

About 10 e-matches in series per cue depending on lead length and brand.

Each module has two XLR connectors which allow you to have multiple modules on the same wiring branch.  Each module is still independently addressable.

Input and Output are gold plated industry standard 4pin XLR connectors

32bit microprocessor receives data via the RS485 Reliable Data Protocol

Module mode switch selects Safe, Test, or Arm

Multicolor LED indicates module mode

Powered by the rechargeable batteries in the controller

Power Booster Packs available to provide additional power in the field if needed for unlimited cable runs

Industrial ABS weatherproof case.





45 cue Self Contained Digital Smart Module

(Digital FM-45QC)

Digital processor and terminals in a single unit

90 Stainles Steel Quick Clip Terminals per module allow for 45 cues.

About 10 e-matches in series per cue depending on lead length and brand.

Each module has two XLR connectors which allow you to have multiple modules on the same wiring branch.  Each module is still independently addressable.

Input and Output are gold plated industry standard 4pin XLR connectors

32bit microprocessor receives data via the RS485 Reliable Data Protocol

Module mode switch selects Safe, Test, or Arm

Multicolor LED indicates module mode

Powered by the rechargeable batteries in the controller

Power Booster Packs available to provide additional power in the field if needed for unlimited cable runs

Industrial PolyStyrene weatherproof case.









NightHawk Wireless Transmitter

Transmits data extremely reliably up to 1 mile to wireless receivers or modules

(In some cases, our customers have got up to 2 miles line of sight)

2.4 Ghz Spread spectrum with hopping technology to eliminate errant radio interference.

32 bit microprocessor receives data via the RS485 Reliable Data Protocol

One transmitter can control up to 199 individual modules

Can be used standalone or alongside wired system.

Gold Plated XLR input

Powered by the rechargeable batteries in the controller

Weatherproof ABS case







45 cue Wireless Digital Smart Module (FM45W)

Battery, Wireless receiver, digital processor, and terminals in a single unit

Self Contained 2.9 AMP Hour, 24 Volt lead acid rechargeable gel cells

90 Terminals per module allow for 45 cues

Auto power up from transmitter

In range LED

About 10 e-matches in series per cue depending on lead length and brand

XLR port allows you to connect up to 5 additional wired modules (FM45 Digital) to be powered and controlled via this wireless module.  Each one of these modules can then be individually addressed.

Output is gold plated industry standard 4pin XLR connector

2.4 Ghz Spread spectrum with hopping technology for redundancy to eliminate errant radio interference

Module mode switch selects Safe, Test, or Arm

Multicolor LED indicates module mode

Secure key to switch power on or off

Weatherproof ABS case





Wireless Digital Booster Pack

Battery, Wireless receiver, digital processor, and Booster

Can be used instaead of wireless modules and can control all modules in trunk line.

Self Contained 7.5 AMP Hour, 24 Volt lead acid rechargeable gel cells

Auto power up from transmitter

In range LED

Boosts Line Voltage

Fully automatic with Sleep Mode in Power off Condition.

XLR port allows you to connect to standard trunk line feeding all modules

Output is gold plated industry standard 4pin XLR connector

2.4 Ghz Spread spectrum with hopping technology for redundancy to eliminate errant radio interference

Secure key to switch power on or off

Weatherproof ABS case





45 Cue Digital Hybrid Module (SM45 Hybrid)

Digital processor and terminals in a single unit

90 Terminals per module allow for 45 cues. (Mini Pyro Clip)

About 10 e-matches in series per cue depending on lead length and brand.

Each module has two XLR connectors which allow you to have multiple modules on the same wiring branch.  Each module is still independently addressable.

Input and Output are gold plated industry standard 4pin XLR connectors

32bit microprocessor receives data via the RS485 Reliable Data Protocol

Module mode switch selects Safe, Test, or Arm

Multicolor LED indicates module mode

Powered by the rechargeable batteries in the controller

Power Booster Packs available to provide additional power in the field if needed for unlimited cable runs

Powder Coated Aircraft Aluminum Case.





16 Cue Digital Hybrid Module (SM16 Hybrid)

Digital processor and terminals in a single unit

32 Terminals per module allow for 16 cues. (Mini Pyro Clip)

About 10 e-matches in series per cue depending on lead length and brand.

Each module has two XLR connectors which allow you to have multiple modules on the same wiring branch.  Each module is still independently addressable.

Input and Output are gold plated industry standard 4pin XLR connectors

32bit microprocessor receives data via the RS485 Reliable Data Protocol

Module mode switch selects Safe, Test, or Arm

Multicolor LED indicates module mode

Powered by the rechargeable batteries in the controller

Power Booster Packs available to provide additional power in the field if needed for unlimited cable runs

Powder Coated Aircraft Aluminum Case.

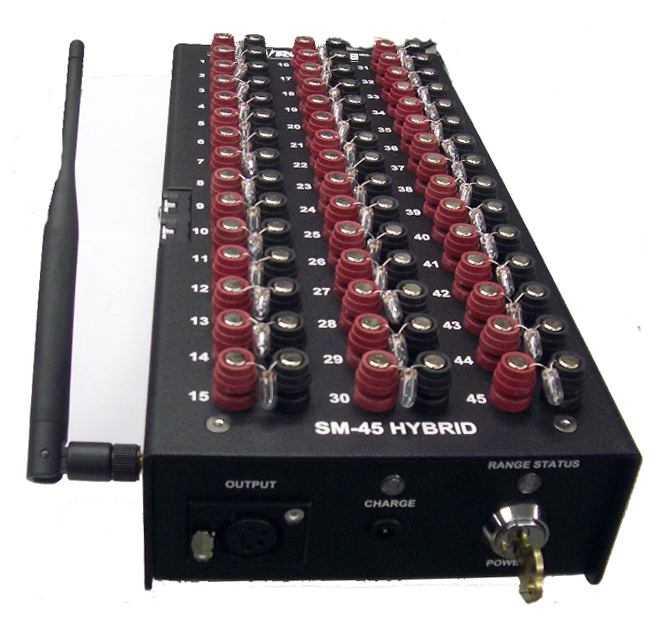

45 cue Wireless Digital Hybrid Module (SM45W)

Battery, Wireless receiver, digital processor, and terminals in a single unit

Self Contained .8 AMP Hour, 24 Volt lead acid rechargeable gel cells

90 Terminals per module allow for 45 cues (Mini Pyro Clip)

Auto power up from transmitter

In range LED

About 10 e-matches in series per cue depending on lead length and brand

XLR port allows you to connect additional wired modules (FM45 Digital) to be powered and controlled via this wireless module ( Must Also Use Power Booster)  Each one of these modules can then be individually addressed .

Output is gold plated industry standard 4pin XLR connector

2.4 Ghz Spread spectrum with hopping technology for redundancy to eliminate errant radio interference

Module mode switch selects Safe, Test, or Arm

Multicolor LED indicates module mode

Secure key to switch power on or off

Weatherproof ABS case



















32 Cue Digital  Module (SM32E)

Digital processor and terminals in a single unit

64 Terminals per module allow for 32 cues. (Speaker terminal type)

About 10 e-matches in series per cue depending on lead length and brand.

Each module has two XLR connectors which allow you to have multiple modules on the same wiring branch.  Each module is still independently addressable.

Input and Output are gold plated industry standard 4pin XLR connectors

32bit microprocessor receives data via the RS485 Reliable Data Protocol

Module mode switch selects Safe, Test, or Arm

Multicolor LED indicates module mode

Powered by the rechargeable batteries in the controller

Power Booster Packs available to provide additional power in the field if needed for unlimited cable runs

Powder Coated Aircraft Aluminum Case.





















Line Condition Monitor/Signal  Booster Isolator

Place anywhere in Line to Monitor Network Status

Boost and Isolate RS 485 signal for Improved communications on long cable runs

Optical Isolation Circuitry

Line Status LED Shows 2 way communication and Faults on Line

Gold Plated XLR output













Power / Signal  Booster Packs

Adds additional power out in the field for larger shows with unlimited cable runs.

Boosts Line Voltage

Boosts RS485 Communications

Line Status LED

Fully automatic with Sleep Mode in Power off Condition.

Allows use of Cat 3, 5 or 2 wire for unlimited length run.

Gold Plated XLR output

Self-contained rechargeable battery power system with 7.5 AMP, 24 Volt lead acid rechargeable gel cells

and SmartCharge

Keyed power switch with LED indicator,









Splitter

Allows you to have a tree topology with branches splitting from the trunk

6 Gold Plated XLR 4pin connectors

1 XLR in and 1 XLR out for the trunk and 4 XLR ports for the branches

Extruded Aluminum









Active Splitter

Protects from system shutdown due to shorted cables.

Automatically disconnects shorted cable branch

Led indicator on all outputs

Allows you to have a tree topology with branches splitting from the trunk

9 Gold Plated XLR 4pin connectors

1 XLR in and 1 XLR out for the trunk and 7 XLR ports for the branches

Extruded Aluminum Case















XLR Cable Tester

Protect system from shutdown due to shorted cables.

Tests for proper continuity

Tests for shorts or crossover of conductors

Led indicator on all outputs

Internal Batteries

1-4 pin XLR male in and 1-4 pin XLR female out

Plastic Case





1000" Trunk Cable

Lightweight 1000' Trunk Cable in wind up pail for use with Booster Packs.

































Cable Reels

Protect your expensive Cables with these High impact Plastic cable reels,

HDPE plastic reels will accept up to 300' of XLR cable and provide

a secure and easy way to use and store your cables.

.











Test Lamps Bag of 100-- $95.00













 Overview  Features  Specifications  Pricing  Manuals


Discount Pricing

Click Configuration Below for Quick Jump:

45 Cue Digital P-45 System with Wired Digital Modules

540 Cue Digital P-45 System with Wired Digital Modules

Core System Components

Wireless Options

Topology Enhancements



Sample Configurations

FM45 Digital Connection Module

45 Cue Digital P-45 System with Wired Digital Modules  $3,518.00
1 Digital P-45   Pyrotechnic Firing Controller
1 FM45 Digital Connection Module
1100' Cable

90 Cue Digital P-45 System with Wired Digital  Modules  $4,752.00
1 Digital P-45   Pyrotechnic Firing Controller
2 FM45 Digital Connection Module
125' Cable
1100' Cable

135 Cue Digital P-45 System with Wired Digital  Modules  $5,346.00
1Digital P-45  Pyrotechnic Firing Controller
3 FM45 Digital Connection Module
225' Cable
1100' Cable

180 Cue Digital P-45 System with Wired Digital  Modules  $6,260.00
1Digital P-45   Pyrotechnic Firing Controller
4 FM45 Digital Connection Module
325' Cable
1100' Cable

225 Cue Digital P-45 System with Wired Digital Modules  $7,174.00
1Digital P-45  Pyrotechnic Firing Controller
5 FM45 Digital Connection Module
425' Cable
1100' Cable

270 Cue Digital P-45 System with Wired Digital  Modules  $8,088.00
1Digital P-45  Pyrotechnic Firing Controller
6 FM45 Digital Connection Module
525' Cable
1100' Cable

315 Cue Digital P-45 System with Wired Digital  Modules  $9,102.00
1Digital P-45   Pyrotechnic Firing Controller
7 FM45 Digital Connection Module
625' Cable
1100' Cable

360 Cue Digital P-45 System with Wired Digital  Modules  $9,916.00
1Digital P-45  Pyrotechnic Firing Controller
8 FM45 Digital Connection Module
725' Cable
1100' Cable

405 Cue Digital P-45 System with Wired Digital  Modules  $11,100.00
1Digital P-45 Pyrotechnic Firing Controller
9 FM45 Digital Connection Module
825' Cable
1100' Cable

450 Cue Digital P-45 System with Wired Digital  Modules  $11,744.00
1Digital P-45   Pyrotechnic Firing Controller
10 FM45 Digital Connection Module
925' Cable
1100' Cable

495 Cue Digital P-45 System with Wired Digital  Modules  $12,858.00
1Digital P-45   Pyrotechnic Firing Controller
11 FM45 Digital Connection Module
1025' Cable
1100' Cable

540 Cue Digital P-45 System with Wired Digital Modules  $13,572.00
1Digital P-45   Pyrotechnic Firing Controller
12 FM45 Digital Connection Module
1125' Cable
1100' Cable



Wireless Digital Configurations

45 Cue Digital P-45 with Digital Wireless Modules  $4,657.00
1Wireless Digital P-45  Pyrotechnic Firing Controller
1SM45 Digital Wireless Module

90 Cue Digital P-45 with Digital Wireless Modules  $6,585.00
1Wireless Digital P-45  Pyrotechnic Firing Controller
2SM45 Digital Wireless Modules

225 Cue Digital P-45  with Digital Wireless Modules  $11,469.00
1Wireless Digital P-45  Pyrotechnic Firing Controller
5 SM45 Digital Wireless Modules



Core System Components List PriceDiscount Price

Digital P-45  Firing Controller $2959 $2,529
Wireless Digital P-45  Firing Controller  $3359 $3,029
Upgrade From DP-45 to AF-45 $1499 $999

FM45 Digital  45 Cue Digital Module$1029 $829
FM-45QC Digital 45 cue Module with Stainless Steel Quick Clip Connectors $1089 $879
FM45 Module Upgrade to Digital FM 45 $580 $459
SM45 Hybrid  45 Cue Digital Module $1029 $829
SM16 Hybrid  16 Cue Digital Module $834 $695
SM32E  32 Cue Digital Module $789$599
Optional Work Light  $79


5' XLR Cable $82 $68
10' XLR Cable $84 $72
25' XLR Cable $102 $89
50' XLRCable $132 $117
100' XLRCable $192 $173
200' XLRCable $312 $331
XLR Cable Tester$143 $119
1000' Trunk Cable$295 $249
Cable Reel $129 $105

Wireless Options
NightHawk Wireless Transmitter $958 $798
Wireless Booster Pack $1,899 $1,499
45 Cue Wireless Digital Smart Module (FM45DW) $1918 $1,598
45 Cue Hybrid Wireless Digital Smart Module

(SM45 Hybrid Wireless)

$1918 $1,598

20' Antenna Extension Cable$78 $65.00


USB Adapter for above modems $95$79
IMP 2 Line Balancer $95$79
Audio Patch Cable $23$19

Topology Enhancements
Power Booster Pack $951$759
Line Condition Monitor $459$329
5 way Digital Splitter $310$229
8 way Active Digital Splitter$595 $549
XLR Cable Tester$143 $119

*All prices and options subject to change without notice



 Overview  Features  Specifications  Pricing  Manuals

Documentation

Digital P-45 Operation Manual

Battery Charging And Maintenence

PDF Smartfire/Smarthawk Wireless Instruction Manual













PYROMATE INC. 270 OLD DUBLIN RD. PETERBOROUGH NH 03458

603-924-4251 Fax 603-784-5036  sales@pyromate.com

Copywrite 2005 Pyromate.  All Rights Reserved

PYROMATE INC. 270 OLD DUBLIN RD. PETERBOROUGH NH 03458





DISCLAIMER:  The purpose of this equipment is to cause initiation of industry standard Pyrotechnic electric matches to ignite display type fireworks or pyrotechnic special effects.  Fireworks and special effects materials are explosives and may cause personal injuries or death to yourself or others, including spectators. SAFETY IS YOUR RESPONSIBILITY and is beyond the control of PYROMATE Inc.  The buyer / user assumes all responsibility and liability in the use of this equipment and further agrees, by purchase and /or use of this equipment, to indemnify and hold harmless PYROMATE Inc. and its agents against all liability for injury, loss, or damage direct or consequential arising out of the use of, or inability to use this equipment.  Any subsequent purchaser is also bound by these conditions of sale. There is no 30 day trial period as printed in previous ads or Flyers. Prices are subject to change without notice.

Terms, 1-All Systems are built to order and require a non refundable 20% down payment and Cancellation of said orders are subject to a 20% restocking fee.  There will be a 4% Fee on credit or debit card orders.

              2- All orders must be paid in full prior to shipping unless previously agreed to on paper,

              3- All delinquent payments will be subject to Finance charges of 2% monthly.

              4- Anyone purchasing equipment from Pyromate is bound by these terms.

This Warranty and Terms Supersede any previously written terms or warranty on Brochures or written advertisements prior to 2-17-10
