It has all the features you would expect in a high-end manual system. It also gives you the ability to layout the topology for up to 10 simultaneous shot fronts.

Its durable weatherproof construction and high-end components ensure lifelong durability.

If you decide you want to move up to computerized firing, all modules, wires and components are fully compatible with the Nighthawk Firing Controller, as well as SmartFire.

Overview

Features

Has the ability to connect 120 modules on 12 banks which results in 4500 pairs of connections.

Each of the 12 banks has 45 switches to allow for 540 separate cues.

Each cue can fire up to 30 e-matches simultaneously over 1200 feet.

Pass-through connectors allow you to setup for simultaneous fired fronts up to 1200' wide.

Extremely high-end durable weatherproof switches and other components ensure reliable operation.

Keyed Arm switch for safety

Industrial ABS Weatherproof Case

Internal 24 volt 2.9 amp hour Rechargeable Power Supply with Smart Charger

48 Volt Option for Heavy jobs with lots of fronts

Components fully compatible with the Nighthawk Firing Controller for easy upgradeability

All PyroMate Firing Systems come with a 2-Year warranty on all parts and labor, and 100 % satisfaction money-back guarantee.

Specifications

P-45 Controller

45 weatherproof firing switches are rated for 100,000 actuations

45 LED continuity test lamps for testing circuits

1 Bank Output can be connected to module or expansion module selector

Keyed Arm Switch

Gold Anodized Aluminum Faceplate

High Density ABS Weatherproof Case

Self Contained 2.9 AMP, 24 Volt lead acid rechargeable gel cells.

Low output work light

45 Cue Field Module (FM-45)

45 pairs of spring-loaded terminals for termination of igniters.

Gold Plated 50 pin Centronics Input connector.

Gold plated 50 pin Centronics Pass-through output connector

for connecting modules in fronts for multiple site firing.

High Density ABS Weatherproof Case for the ultimate in durability.

Circuit board design for reliability.

Steering diodes on each circuit for Matrix expansion.

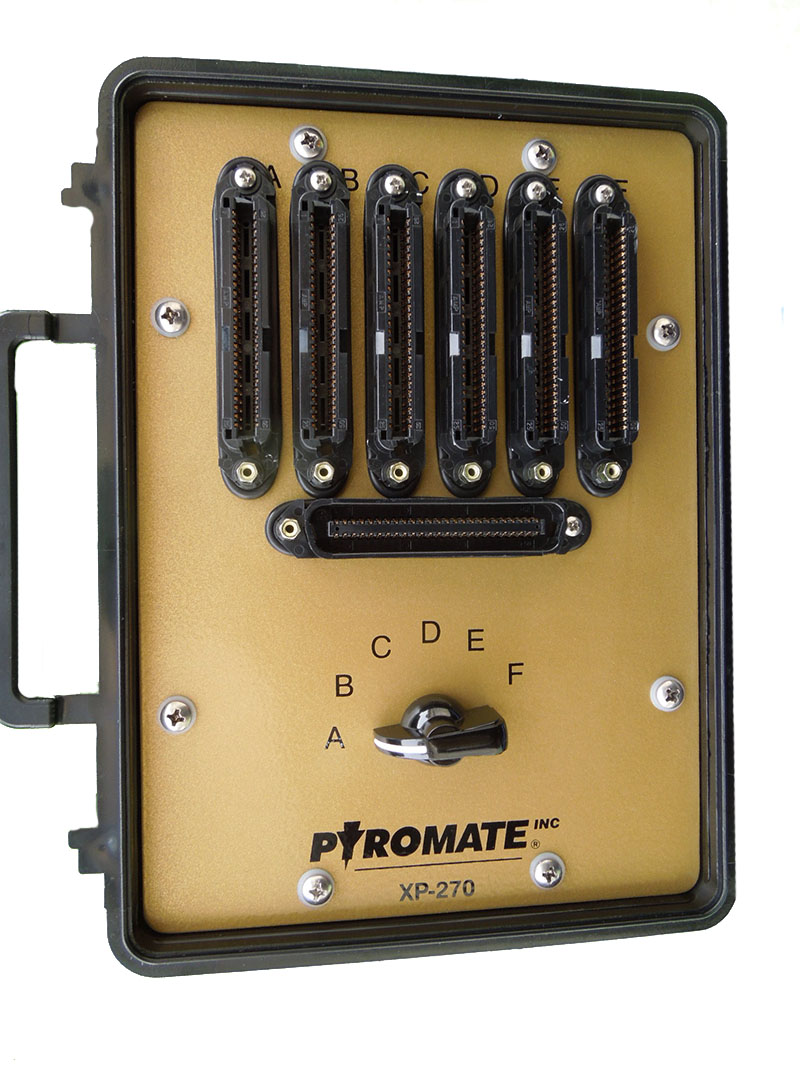

6 Position XP-270 Cue Expansion Module Selector

Expands basic System from 1 Bank channel to 6 Bank channels

1 Gold Plated 50 pin Centronics Input connector.

6 Gold Plated 50 pin Centronics output connectors.

6 Position Selector Switch for activating up to 270 individual cues

High Density ABS Weatherproof Case

12 Position XP-540 Cue Expansion Module Selector

Expands basic System from 1 Bank Channel to 12 Bank Channels

1 Gold Plated 50 pin Centronics Input connector.

12 Gold Plated 50 pin Centronics output connectors.

12 Position Selector Switch for activating up to 540 individual cues

High Density ABS Weatherproof Case

Heavy duty aluminum Module Cover

Protect your modules from rain, fire, and falling debris with this heavy duty Aluminum cover, made from 1/16" aircraft aluminum, Large enough for any type module, splitter or booster pack.

Units are stackable for easy transport and are open on both ends for cables and other wires .

Test Lamps Bag of 100 $25.00

16 foot 45 Cue Aluminum Rail

This rail can be used in place of a module for mortars that are spaced apart

Discount Pricing

45 Cue P-45 System $1,882.00
1	P-45 Firing Panel/Controller
1	FM-45 Connection Module
1	100' Cable
	(Optional Battery Status Indicator Available)$69.00
	(Optional Time Clock Available)$160.00


90 Cue P-45 System $2,860.00
1	P-45 Firing Panel/Controller
1	XP-270 Expansion Module
1	Expansion Cable
2	FM-45 Connection Modules
2	100' Cables
	(Optional Battery Status Indicator Available)$69.00
	(Optional Time Clock Available)$160.00

135 Cue P-45 System $3,397.00
1	P-45 Firing Panel/Controller
1	XP-270 Expansion Module
1	Expansion Cable
3	FM-45 Connection Modules
3	100' Cables
	(Optional Battery Status Indicator Available)$69.00
	(Optional Time Clock Available)$160.00

180 Cue P-45 System $3,934.00
1	P-45 Firing Panel/Controller
1	XP-270 Expansion Module
1	Expansion Cable
4	FM-45 Connection Modules
4	100' Cables
	(Optional Battery Status Indicator Available)$69.00
	(Optional Time Clock Available)$160.00

225 Cue P-45 System $4,471.00
1	P-45 Firing Panel/Controller
1	XP-270 Expansion Module
1	Expansion Cable
5	FM-45 Connection Modules
5	100' Cables
	(Optional Battery Status Indicator Available)$69.00
	(Optional Time Clock Available)$160.00

270 Cue P-45 System $5,008.00
1	P-45 Firing Panel/Controller
1	XP-270 Expansion Module
1	Expansion Cable
6	FM-45 Connection Modules
6	100' Cables
	(Optional Battery Status Indicator Available)$69.00
	(Optional Time Clock Available)$160.00

315 Cue P-45 System $5,845.00
1	P-45 Firing Panel/Controller
1	XP-540 Expansion Module
1	Expansion Cable
7	FM-45 Connection Modules
7	100' Cables
	(Optional Battery Status Indicator Available)$69.00
	(Optional Time Clock Available)$160.00

360 Cue P-45 System $6,382.00
1	P-45 Firing Panel/Controller
1	XP-540 Expansion Module
1	Expansion Cable
8	FM-45 Connection Modules
8	100' Cables
	(Optional Battery Status Indicator Available)$69.00
	(Optional Time Clock Available)$160.00

405 Cue P-45 System $6,919.00
1	P-45 Firing Panel/Controller
1	XP-540 Expansion Module
1	Expansion Cable
9	FM-45 Connection Modules
9	100' Cables
	(Optional Battery Status Indicator Available)$69.00
	(Optional Time Clock Available)$160.00

450 Cue P-45 System $7,456.00
1	P-45 Firing Panel/Controller
1	XP-540 Expansion Module
1	Expansion Cable
10	FM-45 Connection Modules
10	100' Cables
	(Optional Battery Status Indicator Available)$69.00
	(Optional Time Clock Available)$160.00

495 Cue P-45 System $7,993.00
1	P-45 Firing Panel/Controller
1	XP-540 Expansion Module
1	Expansion Cable
11	FM-45 Connection Modules
11	100' Cables
	(Optional Battery Status Indicator Available)$69.00
	(Optional Time Clock Available)$160.00

540 Cue P-45 System $8,530.00
1	P-45 Firing Panel/Controller
1	XP-540 Expansion Module
1	Expansion Cable
12	FM-45 Connection Modules
12	100' Cables
	(Optional Battery Status Indicator Available)$69.00
	(Optional Time Clock Available)$160.00

Individual Components	List Price	Discount Price
P-45 Controller/Firing Panel	$1,614	$1345
48 Volt Option	$299	$249
Battery Status Indicator	$83	$69
LCD Time Clock	$192	$160
XP-270 Expansion Module	$479	$399
XP-540 Expansion Module	$839	$699
FM-45 Connection Module	$479	$399
FM-45 Module Tester	$198	$165
Expansion Cable	$50	$42
Y- Splitter Cable	$174	$145
25' Cable	$86	$72
50' Cable	$119	$99
100' Cable	$166	$138
200' Cable	$312	$260
LED Work light Replacement Bulb	$29	$24
Module Cover	$42	$35
Shunting Plug	$19	$16

Documentation

PDF P-45 Instructions
